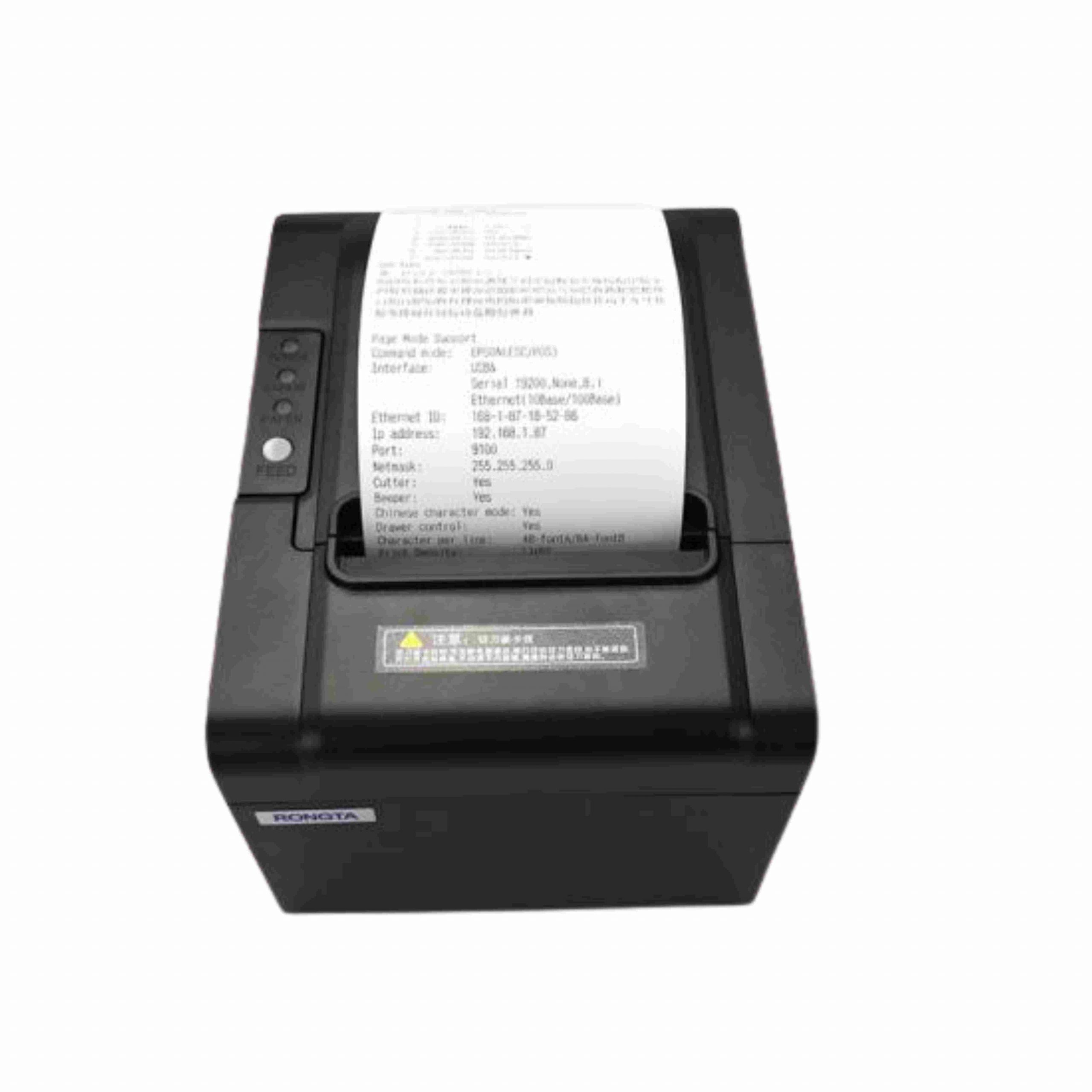

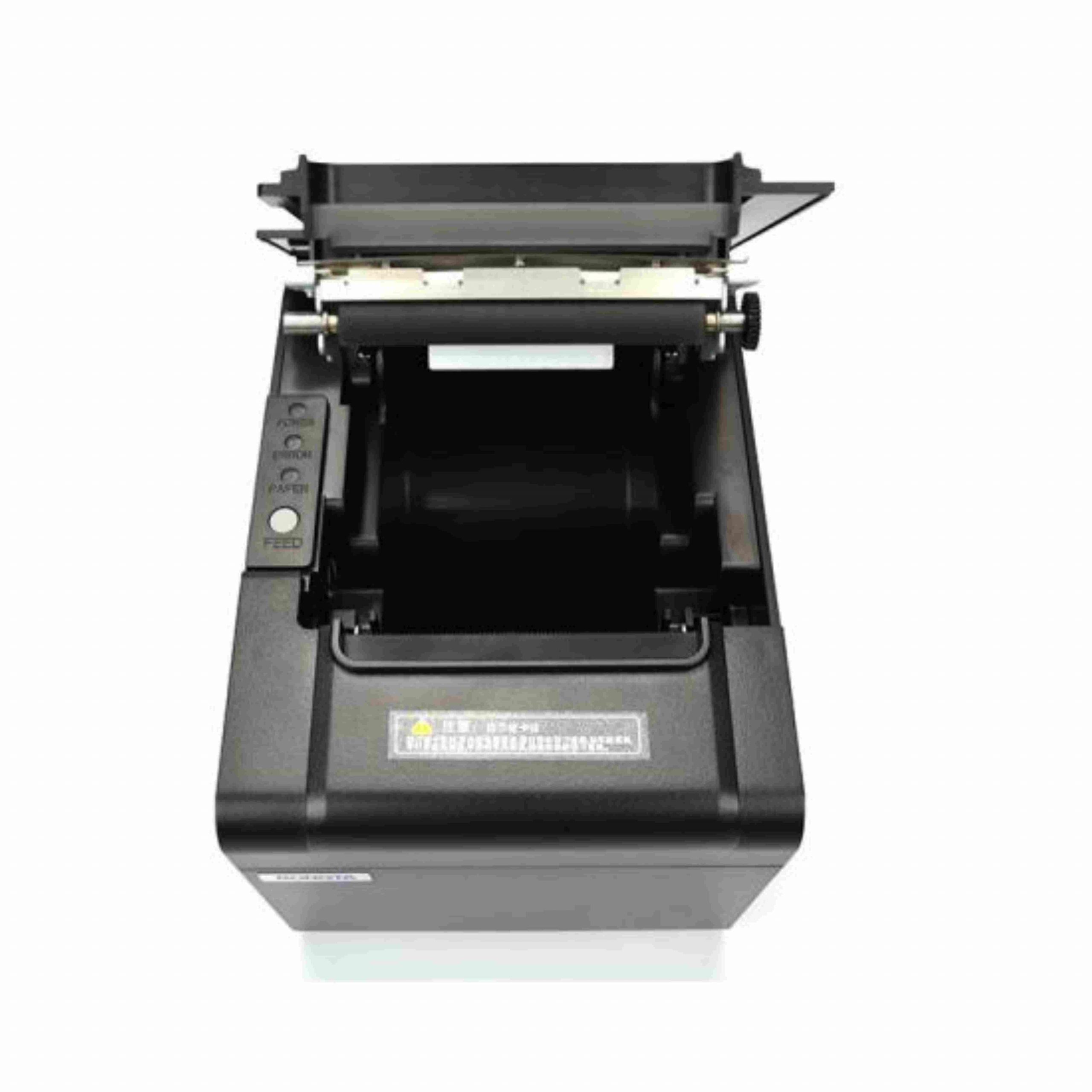

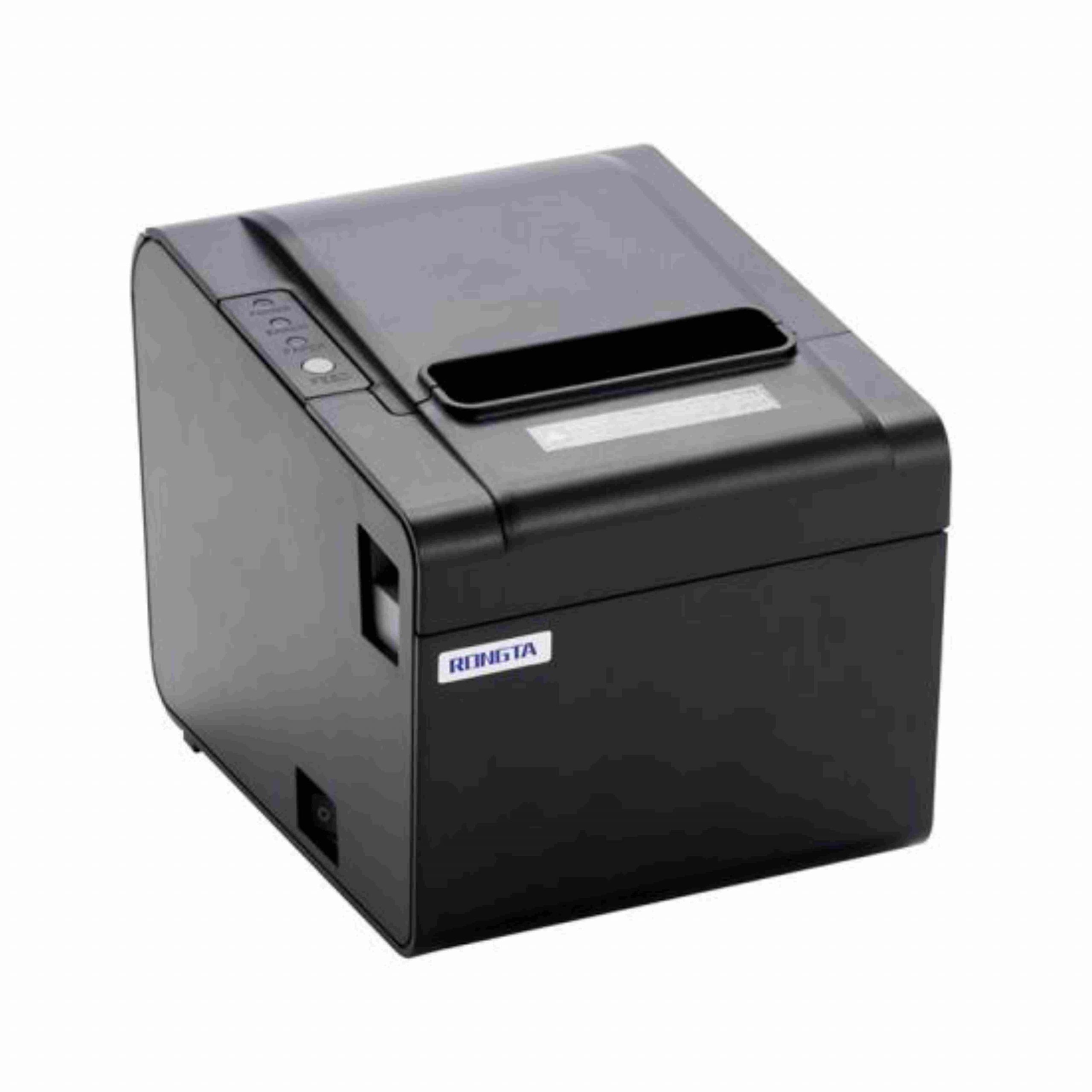

This 80mm direct thermal printer delivers high-speed printing at 250 mm/s with low noise. It features optional auto cutter, flexible USB, serial, and Ethernet interfaces, and can be installed on desktops or walls. Ideal for kitchens, receptions, and retail counters.
Description
Component
Specification
Printing Method
Direct Thermal Printing
Effective Printing Width
72 mm or 48 mm
Resolution
203 dpi
Printing Speed
250 mm/s
Printing Density
576 dots/line or 384 dots/line
Character Set
GB18030 (Simplified Chinese)
Print Font
ASCII Font A: 12x24, Font B: 9x17, Chinese: 24x24
Characters per Line
Font A: 48, Font B: 64, Chinese: 24
Paper Width
79.5 ± 0.5 mm
Paper Roll Diameter
Max. 80 mm
Paper Loading
Easy paper loading
Barcodes Supported
UPC-A, UPC-E, EAN-13, EAN-8, CODE39, I25, CodeBar, CODE128, CODE93, CODE11, MSI, QR Code, PDF417
Auto Cutter
1.5 million cuts
Interface Options
USB, Serial, Ethernet
Paper Out Detection
Optional
Emulation
ESC/POS, OPOS
Driver Compatibility
Windows 2003 / XP / 7 / 8 / 10, Linux, Mac
Power Supply
DC 24V, 2.5A
Cash Drawer Control
DC 24V, 1A
Certificates
3C, CE, FCC ID, ROHS, BIS, REACH
Dimensions (LxWxH)
191 x 140 x 143 mm
Working Temperature
0~45°C
Storage Temperature
-10~60°C
Working Humidity
20-90%
Storage Humidity
10-90% (excluding paper)
Installation Options
Desktop or wall-hanging
Applications
Kitchens, receptions, retail counters
