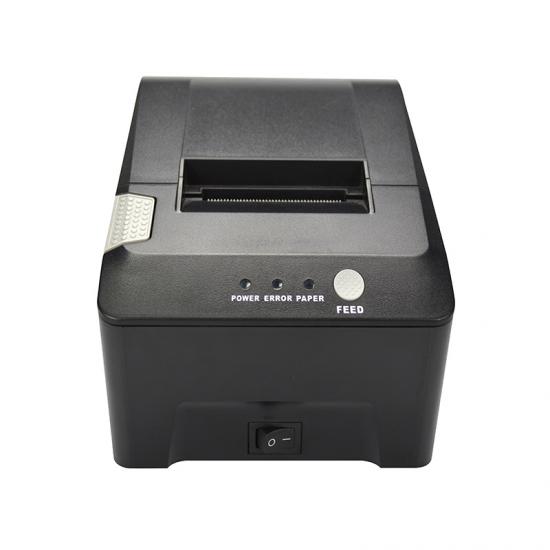

This 58mm thermal receipt printer offers high-speed, low-noise direct thermal printing. It features a durable big gear design, easy paper loading, and auto-printing prompts. Ideal for restaurants, department stores, supermarkets, kitchens, convenience stores, and retail counters.
Description
Component
Specification
Printing Method
Direct Thermal Printing
Printing Speed
Max. 100 mm/s
Resolution
8 dots/mm, 384 dots/line
Effective Printing Width
48 mm
Character Set
GB2312, 16x16 dots or 24x24 dots
Character Sizes
6x8 dots, 8x16 dots, 12x24 dots
Characters per Line
32
Paper Type
Thermal paper
Paper Width
57.5 ± 0.5 mm
Paper Roll Diameter
Max. 83 mm
Roll Core Inner Diameter
Min. 13 mm
Paper Thickness
0.06 to 0.07 mm
Paper Out Detection
Supported
Paper Supply Method
Drop-in paper load
Printer Head Life
>100 km printing length
Reliability (MCBF)
5 million lines
Barcode Types
UPC-A, UPC-E, EAN-13, EAN-8, CODE39, ITF, CODEBAR, CODE93, CODE128, QR Code
Emulation
ESC/POS
Driver Compatibility
Windows 2003 / XP / 7 / 8 / 10
Drawer Port
1 port
Interface Options
USB, US, BU, L, P, S
Input Power
12V, 2A
Cash Box Control
12V, 24V
Net Weight
400 g
Gross Weight
1.0 kg
Dimensions (LxWxH)
210 x 135 x 126 mm
Applications
Restaurants, department stores, supermarkets, kitchens, convenience stores, specialty retail
